PCB Design: What is the minimum via drill size for a given trace width?

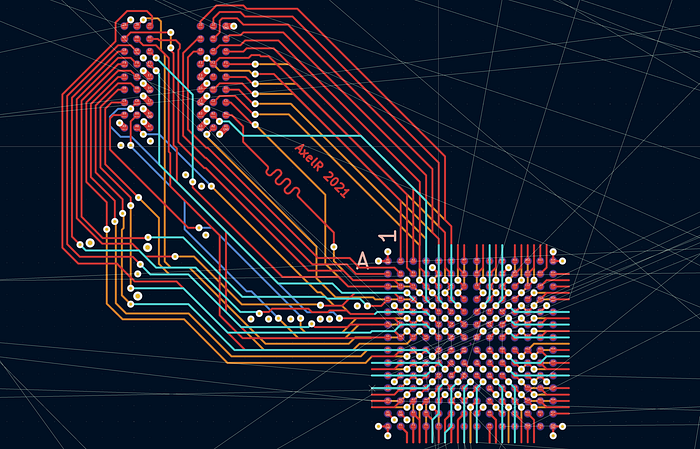

The current-carrying abilities of a trace is well understood, but what about vias?
One way of seeing it is to size the trace appropriately first, then consider its copper cross-section, and maintain that cross-section through the via. Read on…
Back-of-the-envelope estimations based on 70μm copper (2oz) and 25μm hole plating thickness (1mil) shows the via drill diameter should roughly be greater or equal to the trace width it connects to, in order to maintain the copper section through the hole.
When using 35μm copper (1oz) the via drill hole should be greater or equal than half the trace width.
Some fabs say the plating can be as thin as 16μm in their vias, and in that case the minimum via drill hole should be 1.5 * trace width for 2oz copper layers and 0.75 * trace width for 1oz copper, just to avoid introducing a current restriction.
Here is Axel’s rule of thumb for via drill holes, that is a safe default erring on the side of caution in all situations: “the via’s drill diameter should be 1.5 times the trace’s width”. This probably means larger vias that many people use.
Advanced users can use the following formulas to estimate the minimum via drill and pad diameters matching their traces:
